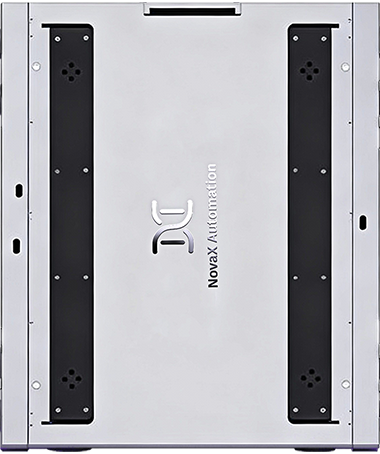

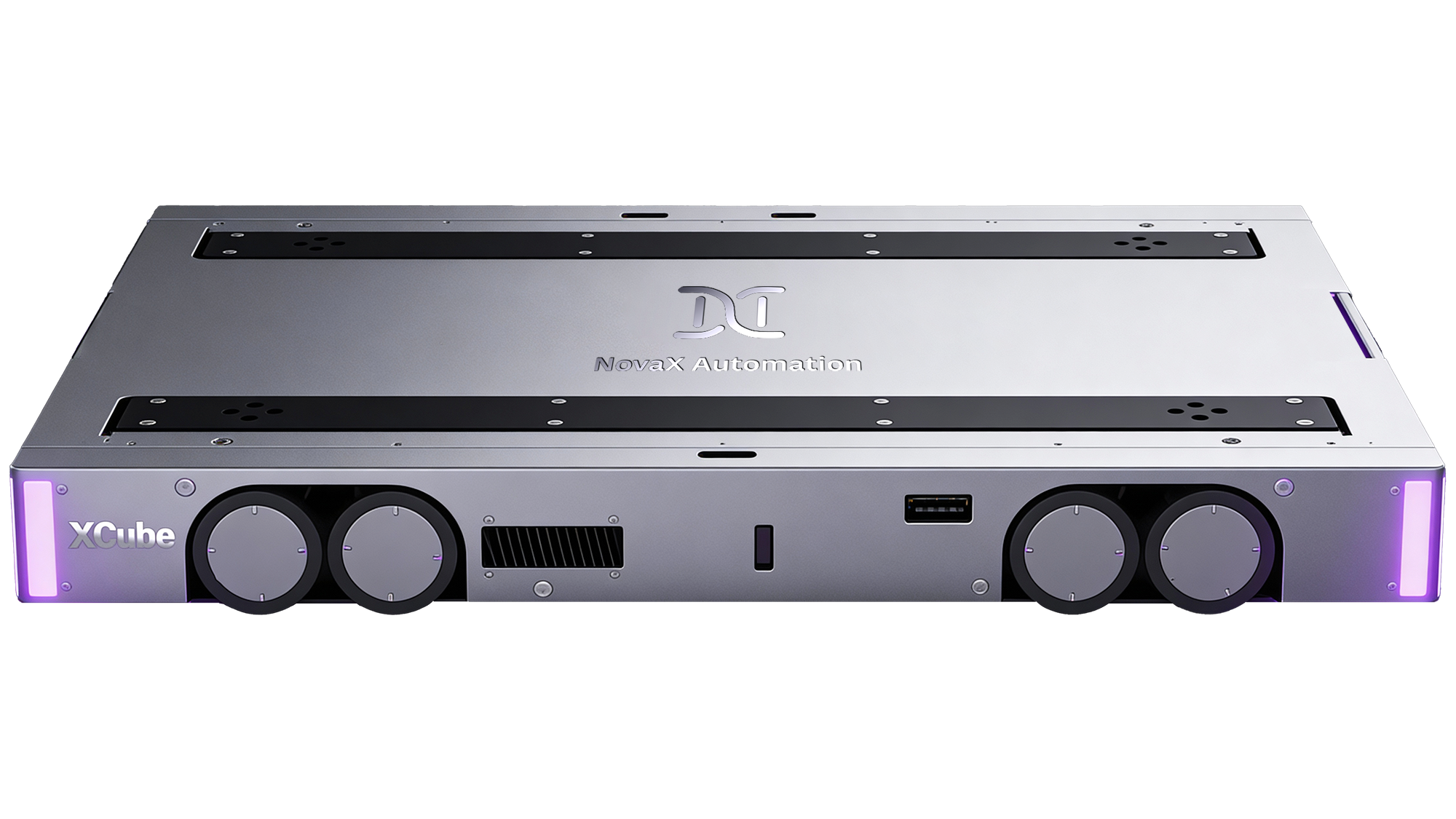

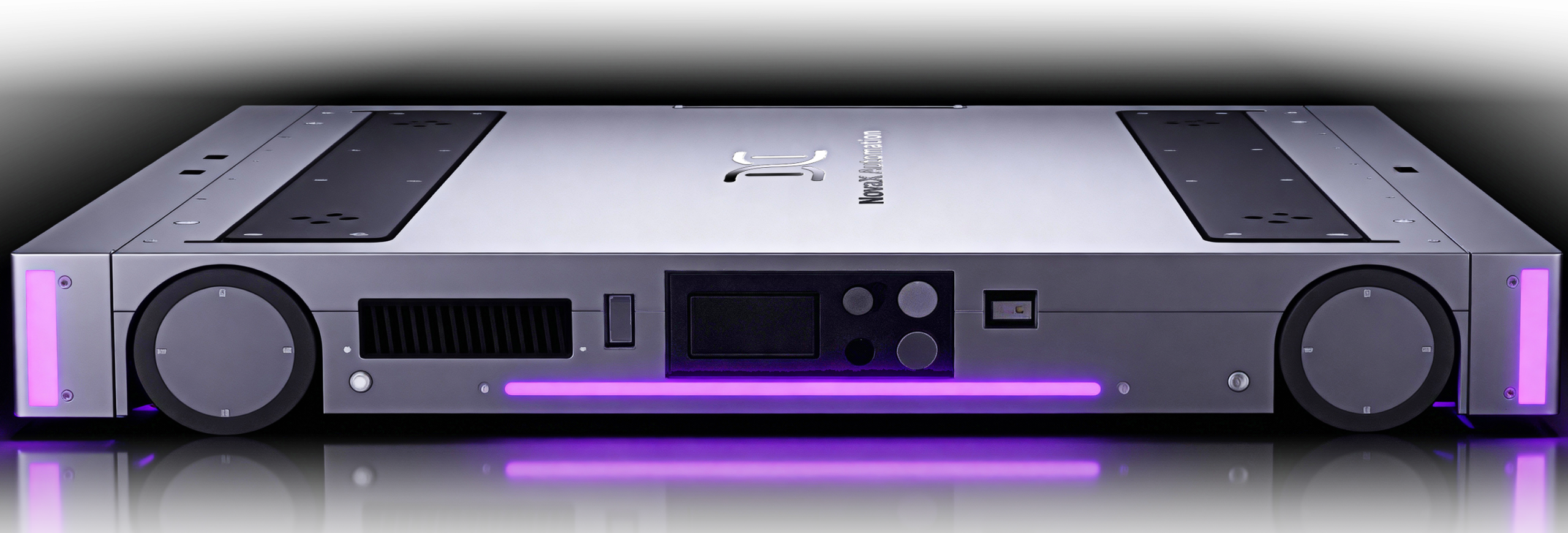

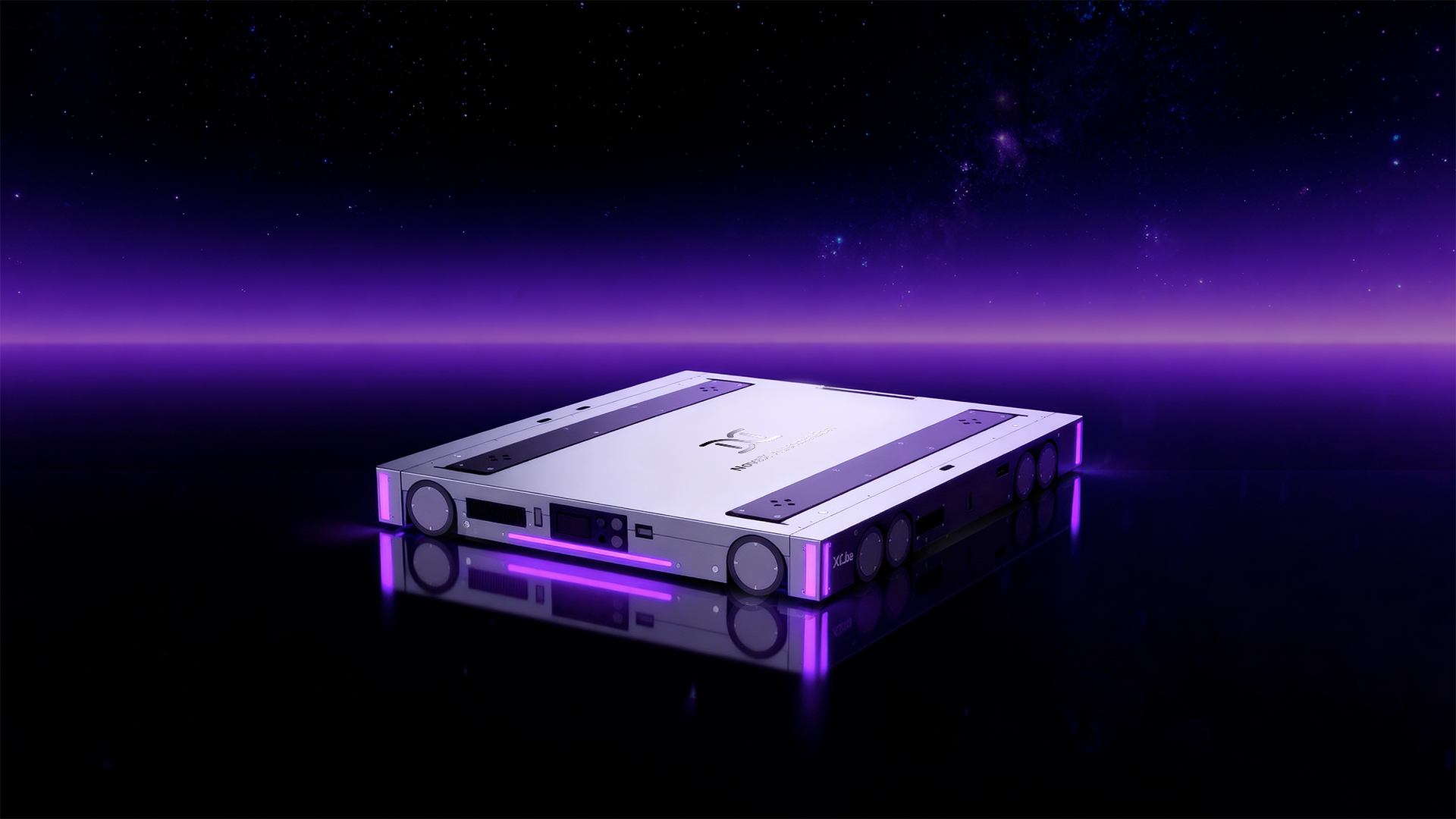

XCube C1：Four-way Shuttle Robot
The Four-way Shuttle Robot C1 is an intelligent warehousing robot designed for pallet dense storage scenarios.
It features four-directional flexible movement, autonomous pallet handling, and multi-robot collaboration.
As the core robot of the XCube dense storage system, the C1 Four-Way Shuttle minimizes aisle requirements to maximize storage density and maintain consistent operational stability.
By integrating with lifts, conveyors, and robotic arms, it offers highly adaptable, flexible storage solutions across various industries.
2,000 kg
Payload Capacity
1.6 m/s
Maximum Speed
-25°C to +45°C
Operating Temperature
±1 mm
Positioning Accuracy
1.0 m/s²
Maximum Acceleration
8-10h
EnduranceTechnical Innovations
Precision Positioning
- Positioning accuracy within ±1 mm, supporting mixed pallet sizes within the same aisle.
Extreme Speed
- No-load speed up to 1.6 m/s; full-load speed 1.2 m/s.
- Lifting cycle time as fast as 1.5 seconds.
Reliable Power System
- Untouched intelligent charging protection ensures energy safety.
- High-capacity battery provides over 10 hours of continuous operation.
Environmental Adaptability
- Operates reliably in temperatures from -25°C to +45°C.
- Customizable for various pallet sizes and warehouse layouts.
Intelligent Core
- Fully self-developed industrial controller with IP67 protection.
- Delivers higher computing power and faster system response.
Comprehensive Safety
- Long-range laser obstacle detection.
- Pallet detection prevent derailment or damage.
The Value of the Product
“Un-limit” Design
High flexibility with size of warehouse, number of robots and type of the pallets
High Speed and Efficiency
New generation hardware with higher speed and efficiency
Intelligent System
Intelligent fleet system drive multi robots working smoothly and efficiently
High Storage Density
Provide pallet density storage
The Parameters of C1 Robots
| Type | Items | C1 – Standard | C1 – Cold | C1 – Heavy |
|
|
|
||
| Basic Parameter | Net Weight
Load Weight Overall Dimension Driving speed full load Driving speed empty Acceleration Lifting time Positioning accuracy Suitable pallets |
300 kg
1.2 T 1135*980*126mm 1.2 m/s 1.6 m/s 2 m/s² 1.5 s ±1 mm 1200*800~1000 |
300 kg
1.2 T 1135*980*126mm 1.2 m/s 1.6 m/s 2 m/s² 1.5 s ±1 mm 1200*800~1000 |
450 kg
2.0 T 1135*980*180mm 1 m/s 1.35 m/s 1.5 m/s² 2 s ±1 mm 1200~1600*1000~1200 |
| Battery Specification | Battery type
Endurance time Charging time Charging mode Temperature |
Lithium Iron Phosphate
8-10 h 2 h Inductive Charging -10~45 ℃ |
Lithium Iron Phosphate
6-8 h 2 h Inductive Charging -25~0 ℃ |
Lithium Iron Phosphate
6-8 h 2 h Inductive Charging -10~45 ℃ |
